Embedded system development tools
- Universal Embedded development board
- 8 / 16 / 32 bit controller’s piggy back boards
- 8 / 16 / 32 bit controller’s prototype board
- Application Specific Interfacing modules
- Application Specific Combo Interfacing modules
SiMS-EAIO-81632 UNIVERSAL EMBEDDED DEVELOPMENT BOARD
Our SiMS-EAIO-81632 UNIVERSAL EMBEDDED DEVELOPMENT BOARD supports following set of microcontrollers
- ✧8051 Microcontroller.
- ✧AVR Microcontroller.
- ✧PIC Microcontroller
- ✧MSP430 Microcontroller.
- ✧Freescale Microcontroller.
- ✧ARM Microcontroller.
The SiMS-EAIO-81632 UNIVERSAL EMBEDDED DEVELOPMENT BOARD is designed for prototyping, laboratory and research purpose.
The board supports programming facility for 8, 16 and 32 bit of Microcontrollers. We have distinguished the board as Mother Board and Daughter Board respectively. Here the mother board will be the same for programming all microcontrollers, only the daughter boards keeps changing depending on which controller to be used.
Features:
LCD Interface 16x2 LCD Interface
16 Characters and 2 Lines.
Seven Segment Interface
Six Digit Seven Segment Display.
Hex Key Pad Interface
4x4 Hex Keypad Interface.
RTC with Keys Interface
Real Time Clock chip programmable / read out.
Facility to define four function keys.
Digital Input Output Interface
Logical Input/Output Module 8 Input Toggle Switches. 8 Ouput LED's
ADC with Sensor Interface
8 bit, 8 channel ADC. Facility to interface with external Analog Signals with channel selection using jumpers. Analog to Digital converter interface using ADC0808 IC Analog Inputs Available are Voltage, Temperature Sensor(Thermistor), Current, LDR Analog to Digital Converter interface using built-in feature of Microcontroller Analog Inputs Available are Voltage, Temperature Sensor(LM-35), Current, LDR.
DAC with Buzzer Interface
Digital to Analog Convertor & Buzzer Interface, 8 bit Single channel DAC, Buzzer
Stepper Motor/ DC Motor and Relay Interface
0.5 Kg/cm2 torque three phase stepper motor interface
RS-232 Interface
Two Separate RS-232 Interfaces available for program downloading and to interface external RS-232 based devices like GPS, Modems, etc.
Memory Card Interface
SiMS-EAIO-81632 UNIVERSAL EMBEDDED DEVELOPMENT BOARD
Our SiMS-EAIO-81632 UNIVERSAL EMBEDDED DEVELOPMENT BOARD supports following set of microcontrollers
- ✧8051 Microcontroller.
- ✧AVR Microcontroller.
- ✧PIC Microcontroller
- ✧MSP430 Microcontroller.
- ✧Freescale Microcontroller.
- ✧ARM Microcontroller.
The Board Supports microcontrollers from
8051 DAUGHTER CARD
- ✧Make: ATMEL
- ✧Device no. AT89S51
- ✧Flash Memory: 4 K bytes
- ✧RAM: 128 Bytes
- ✧ROM: Nil
- ✧ISP: Yes
- ✧Frequency: Up to 33 MHz
- ✧ADC: Nil
- ✧DAC: Nil
- ✧SERIAL I/O: UART
- ✧TIMER/WDT: 2-16Bit Timer, 1-WDT
- ✧PWM: Nil
- ✧General Purpose I/Os: 32
- ✧Sleep Mode: Yes
LPC2148 DAUGHTER CARD
- ✧Make: NXP(PHILIPS)
- ✧Device no. LPC2148FBD64
- ✧Flash Memory: 512 K bytes
- ✧RAM: 32 K Bytes
- ✧ROM: Nil
- ✧ISP: Yes
- ✧Frequency: Up to 60 MHZ
- ✧ADC: 14 Channel, 10 Bit
- ✧DAC: 1 Channel, 10 Bit
- ✧SERIAL I/O: 2UART, SPI, I2C
- ✧TIMER/WDT: 2-32 Bit Timer, 1 WDT
- ✧PWM: 6 Channel
- ✧General Purpose I/Os: 45
- ✧Sleep Mode: Yes
PIC DAUGHTER CARD
- ✧Make: Microchip
- ✧Device no. PIC16F877A
- ✧Flash Memory: 8 K bytes
- ✧RAM: 368 Bytes; ROM:256 bytes
- ✧ISP: Yes; DAC: Nil
- ✧Frequency: Up to 20 MHZ
- ✧ADC: 8 Channel, 10 Bit
- ✧SERIAL I/O: USART, SPI, I2C
- ✧TIMER/WDT: 1-16 Bit Timer,
- ✧2-8 Bit Timer, 1 WDT
- ✧PWM: 2 Channel
- ✧General Purpose I/Os: 33
- ✧Sleep Mode: Yes
AVR DAUGHTER CARD
- ✧Make: ATMEL
- ✧Device no. ATMEGA 32
- ✧Flash Memory: 16 K bytes
- ✧RAM: 1 K bytes
- ✧ROM: 512 Bytes
- ✧ISP: Yes
- ✧Frequency: Up to 16 MHz
- ✧ADC: 8-Channel, 10-Bit
- ✧DAC: Nil
- ✧SERIAL I/O: USART
- ✧2-8 Bit Timer, 1-16 Bit Timer, 1WDT
- ✧PWM: 4-Channel
- ✧General Purpose I/Os: 32
- ✧Sleep Mode: Yes
MSP430 DAUGHTER CARD
- ✧Make: Texas Instruments
- ✧Device no. MSP430F149
- ✧Flash Memory: 60 K bytes
- ✧RAM: 2 K Bytes
- ✧ROM: Nil
- ✧ISP: Yes
- ✧Frequency: Up to 32MHZ
- ✧ADC: 8 Channel, 12 Bit
- ✧DAC: Nil
- ✧SERIAL I/O: 2 USART, SPI
- ✧TIMER/WDT: 2-16 Bit Timer, 1 WDT
- ✧PWM: Nil
- ✧General Purpose I/Os: 48
- ✧Sleep Mode: Yes
FREESCALE DAUGHTER CARD
- ✧Make: Freescale Semiconductor
- ✧Device no. MC9S12C128
- ✧Flash Memory: 128 K bytes
- ✧RAM: 4 K Bytes; ROM: Nil
- ✧ISP: Yes; DAC: Nil
- ✧Frequency: Up to 25 MHZ
- ✧ADC: 8 Channel, 10 Bit
- ✧SERIAL I/O: SCI, SPI, CAN
- ✧TIMER/WDT: 1-16 Bit Timer
- ✧PWM: 6 Channel
- ✧General Purpose I/Os: 31
- ✧Sleep Mode: Yes
Our SiMS-EAIO-81632 UNIVERSAL EMBEDDED DEVELOPMENT BOARD supports following set of microcontrollers
- ✧8051 Microcontroller.
- ✧PIC Microcontroller.
- ✧AVR Microcontroller.
- ✧MSP430 Microcontroller.
- ✧ARM 7 Microcontroller.
- ✧ARM Cortex M3 microcontroller.
The Board Supports microcontrollers from
- ✧SiMS-flexi series 8 / 16/ 32 bit microcontroller trainer / prototyping boards for beginners and
- ✧students interested in carrying out embedded microcontrollers based projects / experiments.
The flexi trainer boards distinguish itself from other boards with the following features:
- ✧Simple and user friendly design.
- ✧Choice of boards on ATMEL, NXP, MICROCHIP, PHILIPS Flash (reprogrammable) devices.
- ✧On board programmer.
- ✧Programming and experiment modes
- ✧Independently configurable I/O port lines in batch of eight using FRC connector
- ✧For immediate reference, port lines are connected through status LEDs.
- ✧User friendly programming software & no soldering required.
- ✧More than 15 different Application specific interfacing modules with Assembly and C language example programs
- ✧Illustrated user’s & Technical reference manual with sufficient example programs and circuit diagrams.
- ✧Power drawn from USB port or power regulators
ATMEL 8051 Microcontroller board
MICROCHIP’S PIC Microcontroller boards
ATMEL’s AT Mega series Microcontroller boards
ARM’s LPC2148 32 bit Microcontroller board
ARM’s CortexM3 LPC1768 Microcontroller board

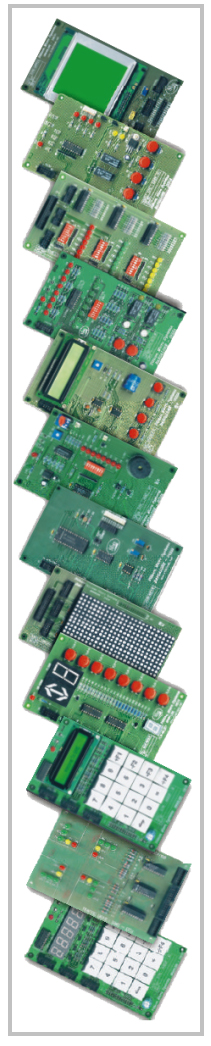

Silicon Application specific interfacing modules are compatible with VLSI - FPGA/CPLD, Embedded development kits based on 8/ 16/ 32 bit microcontrollers and Advanced Microprocessor 8086 based Parallel/USB based modules.
The 10pin and 26pin FRC connectors are provided for compatibility. Each kits will be supplied with 10 or 26 pin FRC cables for interface.
Each Modules are mounted in plastic box. and supplied with users technical reference manual and circuit diagram.
- SiMS-ADCTMP
- Analog to Digital converter
- Teperature control interface module
- 8 bit 8 channel ADC, RTD and Thermistor
- SiMS-DACBUZ
- Digital to Analog & Buzzer
- 8 bit Single channel DAC buzzer
- SiMS-DIORLY
- Logical Input / Output Module
- 8 input and 8 output LED. Two cross over relay
- SiMS-DISHEX
- Seven segment display. Hex Keypad interface
- 6 digits seven segments
- 4x4 switch matrix
- SiMS-LCDHEX
- 16 characters Single Line LCD display
- LCD display with back light
- 4x4 Matrix de-bounce switches
- Hex keypad interface
- SiMS-GENTLC
- Traffic light controller simulator
- Four roads junction simulation
- Vehicle and pedestrians movement
- SiMS-RTCLCD
- Real time Controller with LCD display
- Real time Clock chip programmable
- Read out i2c based & serial EEPROM Interface
- 16 characters x 1 line LCD display
- Display with back-light control
- Facility to define four junction keys
- SiMS-MATDIS
- Matrix Graphics display interface module
- 7x5 Dots display 10Nos framed to get 25x14 dots
- SiMS-GRPDIS
- Graphics LCD display interface
- 128x128 pixels LCD display interface graphical apps
- SiMS-INFRMT
- Infrared Receiver & Transmitter interface
- Standard remote control input
- Potential free relay to explain the application
- SiMS-GENELV
- Elevator operation interface
- Request from inside & outside of elevator simulation
- Movement of elevator through different color LED
- Flexible software to operate in different options
- SiMS-SERIAL
- RS-232 & 485 Communication interface
- To undersand the concept of RS232 & RS485 standards
- 9 pin D type connector provided to interface with PC
- SiMS-STPDCN
- Stepper and DC motor interface
- 0.5Kg/cm2 torque three phase stepper motor interface
- Direction step & speed control
- DC motor speed direction control module 5V/12V DC
- Facility to define four function keys
- SiMS-AUDRT
- Audio Chip Interface
- to understand the concepts of recording
- playback feature with speaker output through controller
Silicon Application specific COMBO interfacing modules are compatible with VLSI - FPGA/CPLD, Embedded development kits based on 8/ 16/ 32 bit microcontrollers and Advanced Microprocessor 8086 based Parallel/USB based modules.
The 10pin and 26pin FRC connectors are provided for compatibility. Each kits will be supplied with 10 or 26 pin FRC cables for interface.
Each Modules are mounted in plastic box or comes with main boards, and supplied with users technical reference manual and circuit diagram.

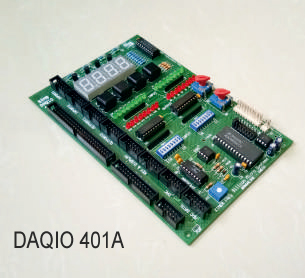

1. SIMS-DAQIO-401A
- ✧4 Digit 7 Segment display
- ✧4 un assigned 4x1 keypad
- ✧16 logical inputs through DIP switch with Green LED indication and 16 logical outputs with RED LED indication
- ✧Analog to Digital converter with internal and external analog signal provisions
- ✧On board Voltage, Frequency, Current signals as reference input for ADC
- ✧Power mate connector provided for external voltage, frequency, current signals as input to ADC.
- ✧Jumper selection provision for external or internal ADC signals
- ✧Single channel Digital to Analog signal converter to generate the wave forms.
- ✧10pin, 26 pin, and 50pin FRC connectors are provided for interface.
- ✧this board can be supplied with FPGA boards or Microcontroller kits in Wooden box.

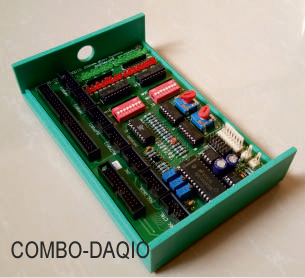

2. SIMS-COMBO-DAQIO
- ✧16 logical inputs through DIP switch with Green LED indication and 16 logical outputs with RED LED indication
- ✧Analog to Digital converter with internal and external analog signal provisions
- ✧On board Voltage, Frequency, Current signals as reference input for ADC
- ✧On board thermister, LDR as sensors
- ✧Power mate connector provided for external voltage, frequency, current signals as input to ADC.
- ✧Jumper selection provision for external or internal ADC signals
- ✧Single channel Digital to Analog signal converter to generate the wave forms.
- ✧10pin, 26 pin, and 50pin FRC connectors are provided for interface.
- ✧Mounted in Plastic box
- ✧

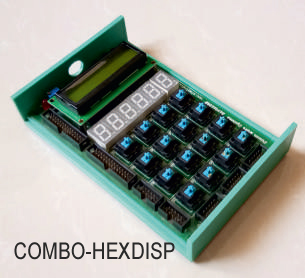

3. SIMS-COMBO-HEXDISP
- ✧16 character x 2 line LCD display with back light, Brightness can be controlled using potentiometer
- ✧6 digit seven segment display
- ✧4 x 4 matrix key board
- ✧10pin & 26 pin FRC connectors are provided for interface.
- ✧Mounted in Plastic box

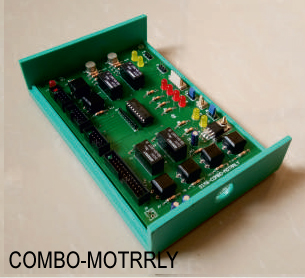

4. SIMS-COMBO-MOTRRLY
- ✧Stepper motor controller driver with four LEDs indication
- ✧motor can be connected through power mate connector
- ✧DC motor controller through relay with two LEDs indication for motor rotation direction
- ✧Two + four un assigned press button keys are provided for key programming
- ✧Two Compact lightweight DPDT contact relay of 5V DC coil voltage; 24V DC contact voltage, 2A contact current provided.
- ✧10pin & 26 pin FRC connectors are provided for interface.
- ✧Mounted in Plastic box

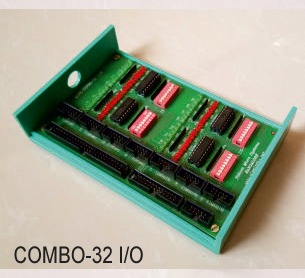

5. SIMS-COMBO-32 I/O
- ✧32 logical inputs through DIP switch and Red color LED indication
- ✧32 logical outputs through Green color LED indication
- ✧10pin, 26 pin, and 50pin FRC connectors are provided for interface.
- ✧Mounted in Plastic box
