Features and Specifications :

• ✧Front-end connection through 12mm 10amps sockets & Patch cords.
• ✧Simulation and extension through industrial grade
• ✧Switches lights and connectors.
• ✧Various static-mimic applications to be Interfaced with PLC.
• ✧Study of ladder diagram using PC based simulation.
• ✧Lightweight rugged metal housing box.
• ✧Choice of PLC for various cost brackets I/O lines
• ✧Exhaustive Courseware with example programs.
• ✧Study of SCADA software. (optional)
• ✧Detachable mimic panels.

Application Mimic Panels:

PUMP TIMING CONTROL

• ✧Water level control System accessories
• ✧Level switches 4Nos
• ✧Water tanks 2Nos
• ✧Pump with water Pipes
• ✧Water tank placing stand
• ✧Switches, patch cords / connecting cables

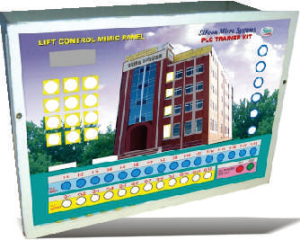

LIFT CONTROL CONTROL

• ✧Four floors Building lift control simulation module.
• ✧16 inputs sockets /10 output sockets.
• ✧24v and gnd line sockets all the sockets are standard with different colours to identify
• ✧up and down selections for lift.
• ✧Control panel : up to four floors, up/down selection, fan/light indication, Floor
• ✧movement indication, Emergency switches, Manual/auto mode selection etc.,
• ✧Lights and switches are mounted on the model.
• ✧Industrial standard Lights & switches are mounted on panel.

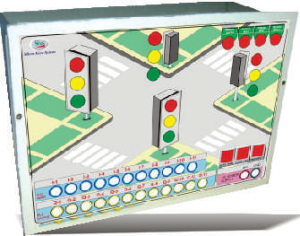

TRAFFIC LIGHT MIMIC PANEL

• ✧Four roads connecting Traffic light control simulation module.
• ✧11 inputs sockets, 12 output sockets, 24v & gnd line sockets.
• ✧Sockets are standard (Blue,Yellow,Red,Green) different coloured.
• ✧Four sets Red / Yellow / Green LEDs to indicate stop/ready/go signals.
• ✧Optical sensors for night mode vehicle identification.
• ✧Facility modes: general, night mode, emergency, & manual/auto.
• ✧Industrial standard Lights and switches are mounted on panel.
• ✧Graphical representation of the module.

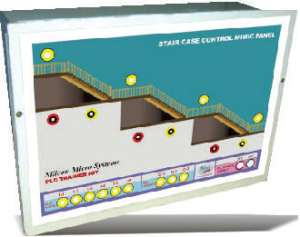

STAIR CASE CONTROL PANEL

• ✧Four floor Building stair case lights controller panel.
• ✧Two way switches for first and second floors.
• ✧All lights 'on' conditions
• ✧Three lights for two three floors.
• ✧6 inputs sockets / 3 output sockets.
• ✧All the sockets are standard with different colors to identify.
• ✧Industrial standard Lights and switches are mounted detachable panel.
• ✧24v and gnd line sockets all the sockets are standard with different colours.
• ✧Housed in Metal Case

Features and Specifications :

• ✧Front-end connection through 12mm 10amps sockets & Patch cords.
• ✧Simulation and extension through industrial grade
• ✧Switches lights and connectors.
• ✧Various static-mimic applications to be Interfaced with PLC.
• ✧Study of ladder diagram using PC based simulation.
• ✧Lightweight rugged metal housing box.
• ✧Choice of PLC for various cost brackets I/O lines
• ✧Exhaustive Courseware with example programs.
• ✧Study of SCADA software. (optional)
• ✧Detachable mimic panels.

Application Mimic Panels:

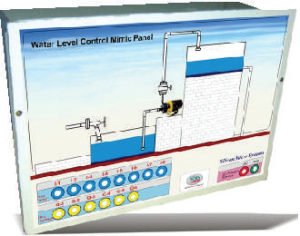

WATER LEVEL CONTROL MIMIC PANEL

• ✧8 inputs sockets / 6 output sockets.
• ✧Water level control simulation module.
• ✧24v and gnd line sockets all the sockets are standard with different colors to identifiy.
• ✧Graphical representation of the module.
• ✧Lights and switches are mounted on the model.
• ✧Industrial standard Lights & switches are mounted on panel.
• ✧Housed in Metal Case

NO - NC & TIMER SIMULATOR CONTROL MIMIC PANEL

• ✧NO - NC timer simulation
• ✧4 inputs sockets, 4 output sockets
• ✧24v & gnd line sockets.
• ✧All the sockets are standard with different colours.
• ✧Housed in Metal Case
• ✧Limit Switches
• ✧Screw terminals

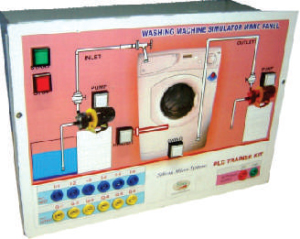

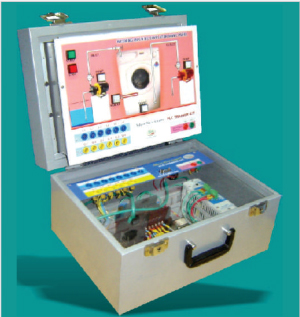

WASHING MACHINE SIMULATOR CONTROL MIMIC PANEL

• ✧Washing machine simulation
• ✧6 inputs sockets, 6 output sockets
• ✧Industrial standard Lights
• ✧Switches mounted with detachable panel for easy access.
• ✧24v and gnd line sockets
• ✧All the sockets are standard with different colours.
• ✧Housed in Metal Case

CONVEYER BELT SYSTEM MODULE

• ✧150 cms length conveyer belt system bench Nylon belt.
• ✧Stepper motor controller interface module.
• ✧Micro controller board to control motor.
• ✧Proximity switches.
• ✧Switches, patch cords.
• ✧connecting cables, screw terminals.

ENCODER SYSTEM (optional attached)

• ✧Rotary wheel
• ✧Optical sensors

VersaPro PLC Programming Made Easy

Features:

• ✧Flexibility and ease of use
• ✧Supporting a full range of PLCs, this Windows®-based program makes minimal demands on your computer's resources, yet delivers the powerful features and fast, responsive performance that make it the ideal choice for a host of applications.
• ✧VersaPro: The programming tool that works the way you do.
• ✧VersaPro has been designed to make it easier to write logic applications with as few keystrokes as possible.
• ✧VersaPro takes full advantage of the familiar Windows environment.
• ✧Cut/copy/paste. Drag-and-drop. VersaPro offers all the functionality of a true Windows program including such convenient features as toolbars and browser windows.
• ✧You can use VersaPro for small projects or large.
• ✧Versatile VersaPro supports the full range of GE Fanuc PLCs, from the VersaMax® Nano and Micro to the Series 90™ - 70 PLC. You can use VersaPro to program ten I/O points or tens of thousands.
• ✧VersaPro grows with you.
• ✧Migrate to a highend controller and take your application with you. There's no need to write new code and debug it from scratch.
• ✧Import existing Logicmaster™ and Control applications.
• ✧VersaPro will convert your legacy applications to help you get the most from your programming investment
• ✧VersaPro makes it easy to re-use existing components.
• ✧If you've created logic once, you don't have to create it again. You can reuse existing components over and over.

CIMPLICITY - HMI / SCADA

Precisely monitor and control every aspect of your industrial operations with High Performance HMI/SCADA

• ✧Enable smarter operators with Efficient HMI for the right actions and outcomes
• ✧As a proven automation platform, CIMPLICITY from GE Digital provides true client/server visualization and control – from single machines to plant locations spanning the world – helping you manage your operations and improve decisionmaking.
• ✧Based on decades of research and development and part of the Proficy family from GE Digital, CIMPLICITY is the HMI/SCADA of choice for the world’s largest manufacturers and utilities. For applications of all sizes, CIMPLICITY can help deliver faster response, reduced costs, and increased profitability.
• ✧Our latest version significantly reduces time-to-value with Rapid Application Development tools including new OPC UA auto-discovery, enhanced mimic-building tools and libraries, and REST APIs for remote configuration. Version 11 also features SQL AlwaysOn support for high availability, threadpooling to increase overall system performance, alarm setup enhancements, and support for the latest operating system and database updates.

Outcomes

• ✧Speed problem detection and response with ISA and GE research-based design concepts for High Performance HMI
• ✧Reduce time-to-value with Rapid Application Development tools including SCADA web configuration and object-oriented design
• ✧Improve decision-making with richer information in context, supported by modeled data
• ✧Reduce threat of cyber attacks with certificate-based communications and secure configuration guidance (Achilles Practices/IEC 62443)
• ✧Minimize maintenance time and costs with zero deployment clients
• ✧Enable superior design flexibility for consumption of thirdparty content
